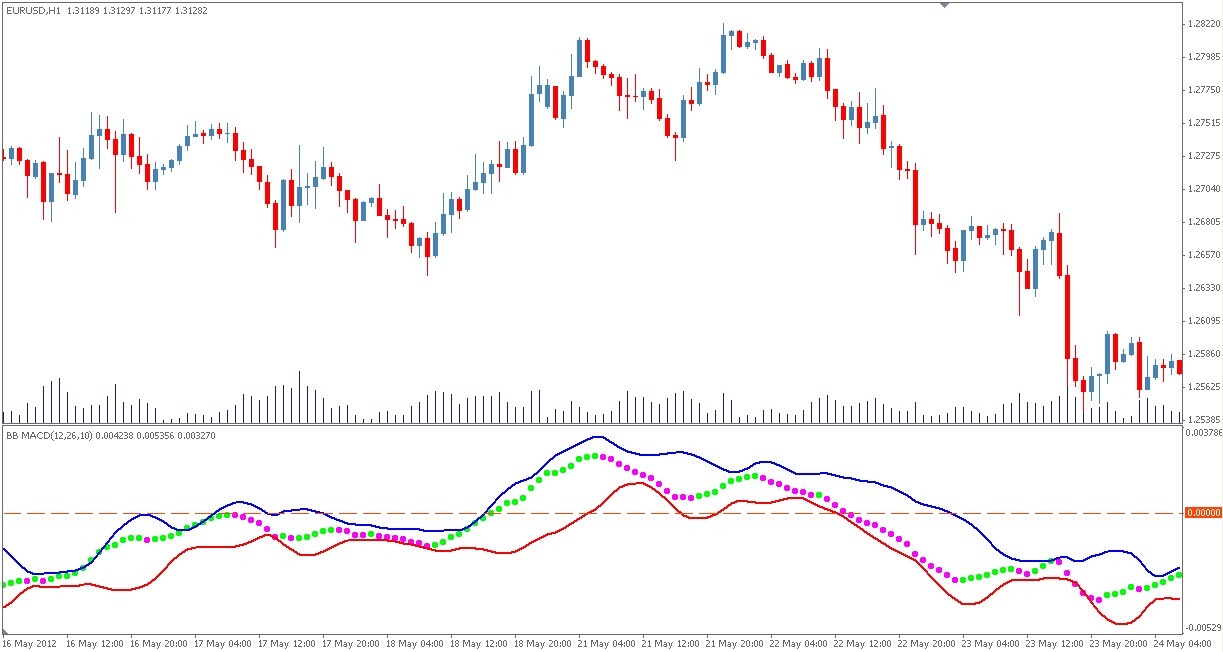

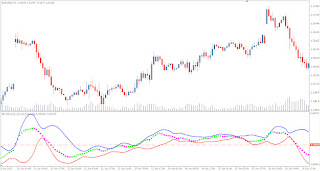

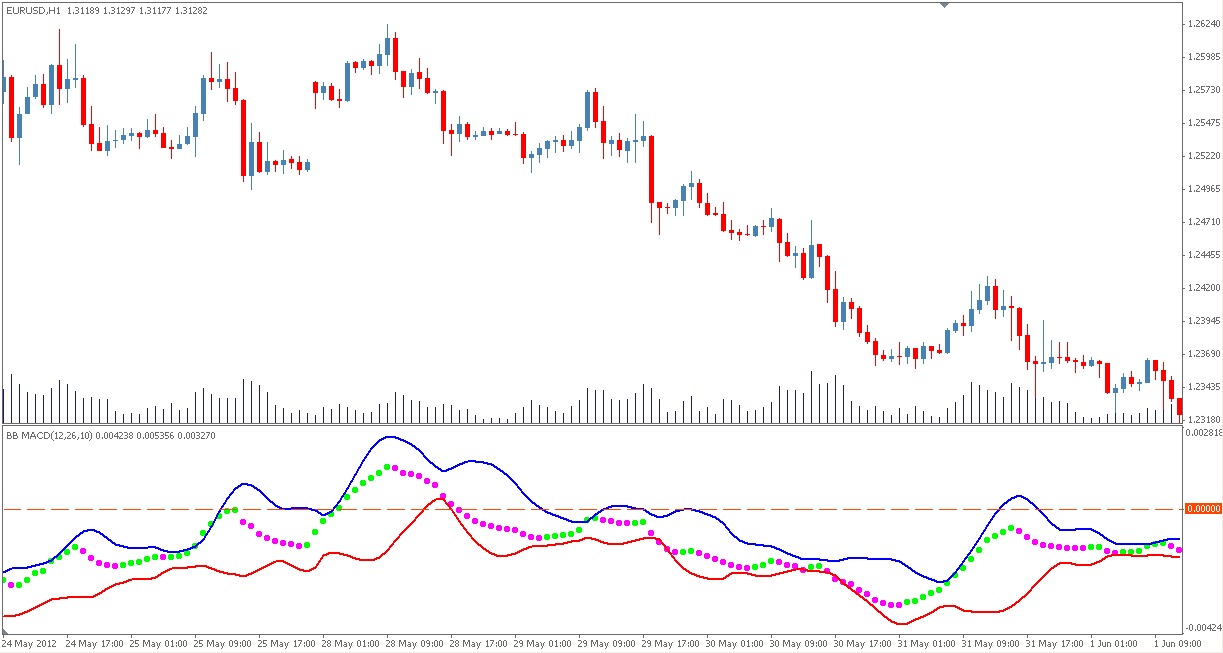

BB MACD Technical Indicator is an interesting combination of two very successful indicators Bollinger Bands - BB and Moving Average Convergence Divergence - MACD. As we can see from the pictures, buy signals appear when magenta dots change to green ones and sell signals emerge in case of a reverse situation. It is better to make deals when the distance between blue and red lines is quite considerable. Currently belongs to the list of basic indicators in some trading platforms.

Indicator BB MACD MQ4 Code Base (Copy Code)
//+------------------------------------------------------------------+
//|                                               Custom BB_MACD.mq4 |
//|                                     Copyright © 2005, adoleh2000 |
//|                                       http://www.metaquotes.net/ |
//+------------------------------------------------------------------+

#property  copyright "Copyright © 2005, adoleh2000"
#property  link      "http://www.metaquotes.net/"
//---- indicator settings
#property  indicator_separate_window
#property  indicator_buffers 4
#property  indicator_color1  Lime    //bbMacd up
#property  indicator_color2  Magenta //bbMacd up
#property  indicator_color3  Blue    //Upperband
#property  indicator_color4  Red     //Lowerband
//---- indicator parameters
extern int FastLen = 12;
extern int SlowLen = 26;
extern int Length = 10;
extern int barsCount = 400;
extern double StDv = 2.5;
//----
int loopbegin;
int shift;
double zeroline;
//---- indicator buffers
double ExtMapBuffer1[];  // bbMacd
double ExtMapBuffer2[];  // bbMacd
double ExtMapBuffer3[];  // Upperband Line
double ExtMapBuffer4[];  // Lowerband Line
//---- buffers
double bbMacd[];
double Upperband[];
double Lowerband[];
double avg[];
double bbMacdline;
double sDev;
double mean;
double sumSqr;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
//---- 6 additional buffers are used for counting.
   IndicatorBuffers(8);
//---- drawing settings
   SetIndexBuffer(0, ExtMapBuffer1); // bbMacd line
   SetIndexStyle(0, DRAW_ARROW);
   SetIndexArrow(0, 108);
   IndicatorDigits(Digits + 1);
//----
   SetIndexBuffer(1, ExtMapBuffer2); // bbMacd line
   SetIndexStyle(1, DRAW_ARROW);
   SetIndexArrow(1, 108);
   IndicatorDigits(Digits + 1);
//----
   SetIndexBuffer(2, ExtMapBuffer3); // Upperband line
   SetIndexStyle(2, DRAW_LINE, STYLE_SOLID, 1);
   IndicatorDigits(Digits + 1);
//----
   SetIndexBuffer(3, ExtMapBuffer4); // Lowerband line
   SetIndexStyle(3, DRAW_LINE, STYLE_SOLID, 1);
   IndicatorDigits(Digits + 1);
//----
   SetIndexBuffer(4, bbMacd);
   SetIndexBuffer(5, Upperband);
   SetIndexBuffer(6, Lowerband);
   SetIndexBuffer(7, avg);
//---- name for DataWindow and indicator subwindow label
   IndicatorShortName("BB MACD(" + FastLen + "," + SlowLen + "," + Length+")");
   SetIndexLabel(0, "bbMacd");
   SetIndexLabel(1, "Upperband");
   SetIndexLabel(2, "Lowerband");
//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//| Custor indicator deinitialization function                       |
//+------------------------------------------------------------------+
int deinit()
  {
//----
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom BB_MACD                                                   |
//+------------------------------------------------------------------+
int start()
  {
   int limit;
   int counted_bars = IndicatorCounted();
   if(counted_bars < 0) return(-1);
   if(counted_bars > 0) counted_bars--;
      if (barsCount > 0)
            limit = MathMin(Bars - counted_bars,barsCount);
      else  limit = Bars - counted_bars;
//----
   for(int i = 0; i < limit; i++)
       bbMacd[i] = iMA(NULL, 0, FastLen, 0, MODE_EMA, PRICE_CLOSE, i) -
                   iMA(NULL, 0, SlowLen, 0, MODE_EMA, PRICE_CLOSE, i);
//----
   for(i = 0; i < limit; i++)
     {
       avg[i] = iMAOnArray(bbMacd, 0, Length, 0, MODE_EMA, i);
       sDev   = iStdDevOnArray(bbMacd, 0, Length, MODE_EMA, 0, i);
       Upperband[i] = avg[i] + (StDv * sDev);
       Lowerband[i] = avg[i] - (StDv * sDev);
       ExtMapBuffer1[i]=bbMacd[i];     // Uptrend bbMacd
       ExtMapBuffer2[i]=bbMacd[i];     // downtrend bbMacd
       ExtMapBuffer3[i]=Upperband[i];  // Upperband
       ExtMapBuffer4[i]=Lowerband[i];  // Lowerband
       //----
       if(bbMacd[i] > bbMacd[i+1])
           ExtMapBuffer2[i] = EMPTY_VALUE;
       //----
       if(bbMacd[i] < bbMacd[i+1])
           ExtMapBuffer1[i] = EMPTY_VALUE;
     }
//---- done
   return(0);
  }
//+------------------------------------------------------------------+

Indicator BB MACD (BB XMACD) MQ5 Code Base (Copy Code)
//+---------------------------------------------------------------------+
//|                                                         BB MACD.mq5 |
//|                                         Copyright © 2009, EarnForex |
//|                                                      earnforex.com/ |
//+---------------------------------------------------------------------+
//| For the indicator to work, place the SmoothAlgorithms.mqh file      |
//| in the directory: MetaTrader\\MQL5\Include                          |
//+---------------------------------------------------------------------+
#property copyright "Copyright © 2009, EarnForex"
#property link      "earnforex.com"
#property version   "1.01"
#property description "BB MACD - Bollinger Bands with MACD mutation based on Moving Averages"
#property description "and Standard Deviation indicators."
//---- indicator version
#property version   "1.00"
//---- drawing indicator in a separate window
#property indicator_separate_window
//---- number of indicator buffers 4
#property indicator_buffers 4
//---- only three plots are used
#property indicator_plots   3
//+------------------------------------------+
//|  Signal line drawing parameters          |
//+------------------------------------------+
//---- drawing the indicator as a three-colored symbol
#property indicator_type1 DRAW_COLOR_ARROW
//---- the following colors are used in a three-colored line
#property indicator_color1 Gray,Lime,Magenta
//---- the indicator line is a continuous one
#property indicator_style1 STYLE_SOLID
//---- the width of the indicator line is 3
#property indicator_width1 3
//---- displaying the signal line label
#property indicator_label1  "Signal MACD"
//+------------------------------------------+
//|  Bollinger Bands drawing parameters      |
//+------------------------------------------+
//---- drawing Bollinger Bands as lines
#property indicator_type2 DRAW_LINE
#property indicator_type3 DRAW_LINE
//---- the following colors are used
#property indicator_color2 Blue
#property indicator_color3 Red
//---- the indicator lines are continuous ones
#property indicator_style2 STYLE_SOLID
#property indicator_style3 STYLE_SOLID
//---- Bollinger Bands width is equal to 1
#property indicator_width2 1
#property indicator_width3 1
//---- display of Bollinger Bands labels
#property indicator_label2 "Up BB"
#property indicator_label3 "Dn BB"
//+-----------------------------------+
//|  Smoothings classes description   |
//+-----------------------------------+
#include <SmoothAlgorithms.mqh>
//---- declaration of the CXMA and CStdDeviation classes variables from the SmoothAlgorithms.mqh file
CXMA XMA1,XMA2,XMA3,XMA4;
CStdDeviation STD;
//+-----------------------------------+
//|  Declaration of enumerations      |
//+-----------------------------------+
enum Applied_price_      // Type of constant
  {
   PRICE_CLOSE_ = 1,     // Close
   PRICE_OPEN_,          // Open
   PRICE_HIGH_,          // High
   PRICE_LOW_,           // Low
   PRICE_MEDIAN_,        // Median Price (HL/2)
   PRICE_TYPICAL_,       // Typical Price (HLC/3)
   PRICE_WEIGHTED_,      // Weighted Close (HLCC/4)
   PRICE_SIMPLE_,        // Simple Price (OC/2)
   PRICE_QUARTER_,       // Quarted Price (HLOC/4)
   PRICE_TRENDFOLLOW0_,  // TrendFollow_1 Price
   PRICE_TRENDFOLLOW1_   // TrendFollow_2 Price
  };
/*enum Smooth_Method - enumeration is declared in the SmoothAlgorithms.mqh file
  {
   MODE_SMA_,  // SMA
   MODE_EMA_,  // EMA
   MODE_SMMA_, // SMMA
   MODE_LWMA_, // LWMA
   MODE_JJMA,  // JJMA
   MODE_JurX,  // JurX
   MODE_ParMA, // ParMA
   MODE_T3,    // T3
   MODE_VIDYA, // VIDYA
   MODE_AMA,   // AMA
  }; */
//+-----------------------------------+
//|  Indicator input parameters       |
//+-----------------------------------+
input Smooth_Method MA_SMethod=MODE_T3;        // Histogram smoothing method
input int Fast_XMA = 12;                       // Fast moving average period
input int Slow_XMA = 26;                       // Slow moving average period
input int SmPhase= 100;                        // Moving averages smoothing parameter
input Smooth_Method Signal_Method=MODE_JJMA;   // Signal line smoothing method
input int Signal_XMA=9;                        // Signal line period
input int Signal_Phase=100;                    // Signal line parameter
input Applied_price_ AppliedPrice=PRICE_CLOSE_;// Price constant
input Smooth_Method BB_Method=MODE_SMA;        // Bollinger smoothing method
input int BBPeriod=20;                         // The period for Bollinger bands
input int BBPhase=100;                         // Bollinger smoothing parameter
input double BBDeviation=2.5;                  // Bollinger deviation
//---- declaration of the integer variables for the start of data calculation
int start,macd_start,sign_start;
//---- declaration of dynamic arrays that further
//---- will be used as indicator buffers
double SignBuffer[],ColorSignBuffer[],ExtLineBuffer1[],ExtLineBuffer2[];
//+------------------------------------------------------------------+
//| The iPriceSeries function description                            |
//| Moving_Average class description                                 |
//+------------------------------------------------------------------+
#include <SmoothAlgorithms.mqh>
//+------------------------------------------------------------------+
//| XMACD indicator initialization function                          |
//+------------------------------------------------------------------+
void OnInit()
  {
//---- initialization of variables of the start of data calculation
   macd_start=MathMax(XMA1.GetStartBars(MA_SMethod,Fast_XMA,SmPhase),XMA1.GetStartBars(MA_SMethod,Slow_XMA,SmPhase));
   sign_start=macd_start+XMA1.GetStartBars(Signal_Method,Signal_XMA,Signal_Phase);
   start=sign_start+XMA1.GetStartBars(BB_Method,BBPeriod,BBPhase);
//---- set SignBuffer[] dynamic array as an indicator buffer
   SetIndexBuffer(0,SignBuffer,INDICATOR_DATA);
//---- performing the shift of the beginning of the indicator drawing
   PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,start);
//---- create label to display in DataWindow
   PlotIndexSetString(0,PLOT_LABEL,"Signal MACD");
//---- setting the indicator values that won't be visible on a chart
   PlotIndexSetDouble(0,PLOT_EMPTY_VALUE,EMPTY_VALUE);
//---- set ColorSignBuffer[] dynamic array as a color index buffer
   SetIndexBuffer(1,ColorSignBuffer,INDICATOR_COLOR_INDEX);
//---- performing the shift of the beginning of the indicator drawing
   PlotIndexSetInteger(1,PLOT_DRAW_BEGIN,start+1);
//---- set ExtLineBuffer1[] and ExtLineBuffer2[] dynamic arrays as indicator buffers
   SetIndexBuffer(2,ExtLineBuffer1,INDICATOR_DATA);
   SetIndexBuffer(3,ExtLineBuffer2,INDICATOR_DATA);
//---- set the position, from which the Bollinger Bands drawing starts
   PlotIndexSetInteger(2,PLOT_DRAW_BEGIN,start);
   PlotIndexSetInteger(3,PLOT_DRAW_BEGIN,start);
//---- restriction to draw empty values for the indicator
   PlotIndexSetDouble(2,PLOT_EMPTY_VALUE,EMPTY_VALUE);
   PlotIndexSetDouble(3,PLOT_EMPTY_VALUE,EMPTY_VALUE);
//---- setting up alerts for unacceptable values of external variables
   XMA1.XMALengthCheck("Fast_XMA", Fast_XMA);
   XMA1.XMALengthCheck("Slow_XMA", Slow_XMA);
   XMA1.XMALengthCheck("Signal_XMA", Signal_XMA);
   XMA1.XMALengthCheck("BBPeriod", BBPeriod);
//---- setting up alerts for unacceptable values of external variables
   XMA1.XMAPhaseCheck("Phase", SmPhase, MA_SMethod);
   XMA1.XMAPhaseCheck("Signal_Phase", Signal_Phase, Signal_Method);
   XMA1.XMAPhaseCheck("BBPhase", BBPhase, BB_Method);
//---- initializations of a variable for the indicator short name
   string shortname;
   string Smooth1=XMA1.GetString_MA_Method(MA_SMethod);
   string Smooth2=XMA1.GetString_MA_Method(Signal_Method);
   string Smooth3=XMA1.GetString_MA_Method(BB_Method);
   StringConcatenate(shortname,
                     "XMACD( ",Fast_XMA,", ",Slow_XMA,", ",Signal_XMA,", ",BBPeriod,", ",
                     Smooth1,", ",Smooth2,", ",Smooth3," )");
//---- creating a name for displaying in a separate sub-window and in a tooltip
   IndicatorSetString(INDICATOR_SHORTNAME,shortname);
//---- determination of accuracy of displaying the indicator values
   IndicatorSetInteger(INDICATOR_DIGITS,_Digits+1);
//---- initialization end
  }
//+------------------------------------------------------------------+
//| XMACD iteration function                                         |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,    // number of bars in history at the current tick
                const int prev_calculated,// number of bars calculated at previous call
                const datetime &time[],
                const double &open[],
                const double &high[],
                const double &low[],
                const double &close[],
                const long &tick_volume[],
                const long &volume[],
                const int &spread[])
  {
//---- checking the number of bars to be enough for the calculation
   if(rates_total<start) return(0);
//---- declaration of integer variables
   int first1,first2,bar;
//---- declaration of variables with a floating point
   double price_,fast_xma,slow_xma,xmacd,sign_xma,bbxma,stdev;
//---- initialization of the indicator in the OnCalculate() block
   if(prev_calculated>rates_total || prev_calculated<=0)// checking for the first start of the indicator calculation
     {
      first1=0;       // starting index for calculation of all first loop bars
      first2=start+1; // starting index for calculation of all second loop bars
     }
   else // starting index for calculation of new bars
     {
      first1=prev_calculated-1;
      first2=first1;
     }
//---- main indicator calculation loop
   for(bar=first1; bar<rates_total; bar++)
     {
      price_=PriceSeries(AppliedPrice,bar,open,low,high,close);
      fast_xma = XMA1.XMASeries(0, prev_calculated, rates_total, MA_SMethod, SmPhase, Fast_XMA, price_, bar, false);
      slow_xma = XMA2.XMASeries(0, prev_calculated, rates_total, MA_SMethod, SmPhase, Slow_XMA, price_, bar, false);
      xmacd=fast_xma-slow_xma;
      sign_xma=XMA3.XMASeries(macd_start,prev_calculated,rates_total,Signal_Method,Signal_Phase,Signal_XMA,xmacd,bar,false);
      //---- Bollinger Bands calculation
      bbxma=XMA4.XMASeries(sign_start+1,prev_calculated,rates_total,BB_Method,BBPhase,BBPeriod,sign_xma,bar,false);
      stdev=STD.StdDevSeries(sign_start,prev_calculated,rates_total,BBPeriod,BBDeviation,sign_xma,bbxma,bar,false);
      //----
      if(bar<=start)
        {
         bbxma=EMPTY_VALUE;
         stdev=0.0;
        }
      //---- loading the obtained values in the indicator buffers
      SignBuffer[bar]=sign_xma;
      ExtLineBuffer1[bar]=bbxma+stdev;
      ExtLineBuffer2[bar]=bbxma-stdev;
     }
//---- main loop of the signal label coloring
   for(bar=first2; bar<rates_total; bar++)
     {
      ColorSignBuffer[bar]=0;
      if(SignBuffer[bar]>SignBuffer[bar-1]) ColorSignBuffer[bar]=1;
      if(SignBuffer[bar]<SignBuffer[bar-1]) ColorSignBuffer[bar]=2;
     }
//----
   return(rates_total);
  }
//+------------------------------------------------------------------+
