Envelopes

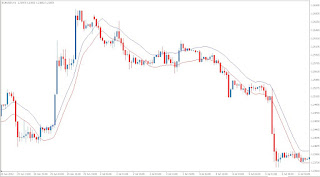

Envelopes Technical Indicator is formed with two Moving Averages. The moving average, which forms the base for this indicator, can be a simple or exponential moving average. Each envelope is then set the same percentage above or below the moving average. Envelopes serve as an indicator of overbought or oversold conditions, visual representations of price trend, and an indicator of price breakouts. Signal to sell appears when the price reaches the upper margin of the band; signal to buy appears when the price reaches the lower margin.

Mathematical Formula:
Upper Band = SMA(CLOSE, N)*[1+K/1000]
Lower Band = SMA(CLOSE, N)*[1-K/1000]

Envelopes MQ4 Code Base (Copy Code)

//+------------------------------------------------------------------+
//|                                                    Envelopes.mq4 |
//|                      Copyright © 2005, MetaQuotes Software Corp. |
//|                                        http://www.metaquotes.net |
//+------------------------------------------------------------------+
#property copyright "Copyright © 2005, MetaQuotes Software Corp."
#property link      "http://www.metaquotes.net"
//---- indicator settings
#property indicator_chart_window
#property indicator_buffers 2
#property indicator_color1 Blue
#property indicator_color2 Red
//---- indicator parameters
extern int MA_Period=14;
extern int MA_Shift=0;
extern int MA_Method=0;
extern int Applied_Price=0;
extern double Deviation=0.1;
//---- indicator buffers
double ExtMapBuffer1[];
double ExtMapBuffer2[];
//----
int ExtCountedBars=0;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
int init()
  {
   int    draw_begin;
   string short_name;
//---- drawing settings
   SetIndexStyle(0,DRAW_LINE);
   SetIndexStyle(1,DRAW_LINE);
   SetIndexShift(0,MA_Shift);
   SetIndexShift(1,MA_Shift);
   IndicatorDigits(MarketInfo(Symbol(),MODE_DIGITS));
   if(MA_Period<2) MA_Period=14;
   draw_begin=MA_Period-1;
//---- indicator short name
   IndicatorShortName("Env("+MA_Period+")");
   SetIndexLabel(0,"Env("+MA_Period+")Upper");
   SetIndexLabel(1,"Env("+MA_Period+")Lower");
   SetIndexDrawBegin(0,draw_begin);
   SetIndexDrawBegin(1,draw_begin);
//---- indicator buffers mapping
   SetIndexBuffer(0,ExtMapBuffer1);
   SetIndexBuffer(1,ExtMapBuffer2);
   if(Deviation<0.1) Deviation=0.1;
   if(Deviation>100.0) Deviation=100.0;
//---- initialization done
   return(0);
  }
//+------------------------------------------------------------------+
//| Custom indicator iteration function                              |
//+------------------------------------------------------------------+
int start()
  {
   int limit;
   if(Bars<=MA_Period) return(0);
   ExtCountedBars=IndicatorCounted();
//---- check for possible errors
   if (ExtCountedBars<0) return(-1);
//---- last counted bar will be recounted
   if (ExtCountedBars>0) ExtCountedBars--;
   limit=Bars-ExtCountedBars;
//---- EnvelopesM counted in the buffers
   for(int i=0; i<limit; i++)
     {
      ExtMapBuffer1[i] = (1+Deviation/100)*iMA(NULL,0,MA_Period,0,MA_Method,Applied_Price,i);
      ExtMapBuffer2[i] = (1-Deviation/100)*iMA(NULL,0,MA_Period,0,MA_Method,Applied_Price,i);
     }
//---- done
   return(0);
  }
//+------------------------------------------------------------------+

Envelopes MQ5 Code Base (Copy Code)

//+------------------------------------------------------------------+
//|                                                    Envelopes.mq5 |
//|                        Copyright 2009, MetaQuotes Software Corp. |
//|                                              http://www.mql5.com |
//+------------------------------------------------------------------+
#property copyright "2009, MetaQuotes Software Corp."
#property link      "http://www.mql5.com"
//--- indicator settings
#property indicator_chart_window
#property indicator_buffers 3
#property indicator_plots   2
#property indicator_type1   DRAW_LINE
#property indicator_type2   DRAW_LINE
#property indicator_color1  Blue
#property indicator_color2  Red
#property indicator_label1  "Upper band"
#property indicator_label2  "Lower band"
//--- input parameters
input int                InpMAPeriod=14;              // Period
input int                InpMAShift=0;                // Shift
input ENUM_MA_METHOD     InpMAMethod=MODE_SMA;        // Method
input ENUM_APPLIED_PRICE InpAppliedPrice=PRICE_CLOSE; // Applied price
input double             InpDeviation=0.1;            // Deviation
//--- indicator buffers
double                   ExtUpBuffer[];
double                   ExtDownBuffer[];
double                   ExtMABuffer[];
//--- MA handle
int                      ExtMAHandle;
//+------------------------------------------------------------------+
//| Custom indicator initialization function                         |
//+------------------------------------------------------------------+
void OnInit()
  {
//--- indicator buffers mapping
   SetIndexBuffer(0,ExtUpBuffer,INDICATOR_DATA);
   SetIndexBuffer(1,ExtDownBuffer,INDICATOR_DATA);
   SetIndexBuffer(2,ExtMABuffer,INDICATOR_CALCULATIONS);
//---
   IndicatorSetInteger(INDICATOR_DIGITS,_Digits+1);
//--- sets first bar from what index will be drawn
   PlotIndexSetInteger(0,PLOT_DRAW_BEGIN,InpMAPeriod-1);
//--- name for DataWindow
   IndicatorSetString(INDICATOR_SHORTNAME,"Env("+string(InpMAPeriod)+")");
   PlotIndexSetString(0,PLOT_LABEL,"Env("+string(InpMAPeriod)+")Upper");
   PlotIndexSetString(1,PLOT_LABEL,"Env("+string(InpMAPeriod)+")Lower");
//---- line shifts when drawing
   PlotIndexSetInteger(0,PLOT_SHIFT,InpMAShift);
   PlotIndexSetInteger(1,PLOT_SHIFT,InpMAShift);
//---
   ExtMAHandle=iMA(NULL,0,InpMAPeriod,0,InpMAMethod,InpAppliedPrice);
//--- initialization done
  }
//+------------------------------------------------------------------+
//| Envelopes                                                        |
//+------------------------------------------------------------------+
int OnCalculate(const int rates_total,const int prev_calculated,
                const datetime &Time[],
                const double &Open[],
                const double &High[],
                const double &Low[],
                const double &Close[],
                const long &TickVolume[],
                const long &Volume[],
                const int &Spread[])
  {
   int    i,limit;
//--- check for bars count
   if(rates_total<InpMAPeriod)
      return(0);
   int calculated=BarsCalculated(ExtMAHandle);
   if(calculated<rates_total)
     {
      Print("Not all data of ExtMAHandle is calculated (",calculated,"bars ). Error",GetLastError());
      return(0);
     }
//--- we can copy not all data
   int to_copy;
   if(prev_calculated>rates_total || prev_calculated<0) to_copy=rates_total;
   else
     {
      to_copy=rates_total-prev_calculated;
      if(prev_calculated>0) to_copy++;
     }
//---- get ma buffer
   if(IsStopped()) return(0); //Checking for stop flag
   if(CopyBuffer(ExtMAHandle,0,0,to_copy,ExtMABuffer)<=0)
     {
      Print("Getting MA data is failed! Error",GetLastError());
      return(0);
     }
//--- preliminary calculations
   limit=prev_calculated-1;
   if(limit<InpMAPeriod)
      limit=InpMAPeriod;
//--- the main loop of calculations
   for(i=limit;i<rates_total && !IsStopped();i++)
     {
      ExtUpBuffer[i]=(1+InpDeviation/100.0)*ExtMABuffer[i];
      ExtDownBuffer[i]=(1-InpDeviation/100.0)*ExtMABuffer[i];
     }
//--- done
   return(rates_total);
  }
//+------------------------------------------------------------------+
